In modern AV integration projects, selecting the right signal distribution solution is essential for achieving stable performance, flexible control, and scalable system design. Two of the most commonly used devices in professional AV environments are the HDMI matrix switch and the HDMI splitter. Although they may appear similar, they serve very different purposes in conference rooms, digital signage systems, control rooms, and video wall applications.
For AV integrators, system designers, and B2B buyers, understanding the differences between these devices is critical when planning reliable HDMI distribution systems, especially in 4K60 HDMI 2.0 environments.
This guide explains the core differences, applications, advantages, and ideal use cases for HDMI matrix switches and HDMI splitters.

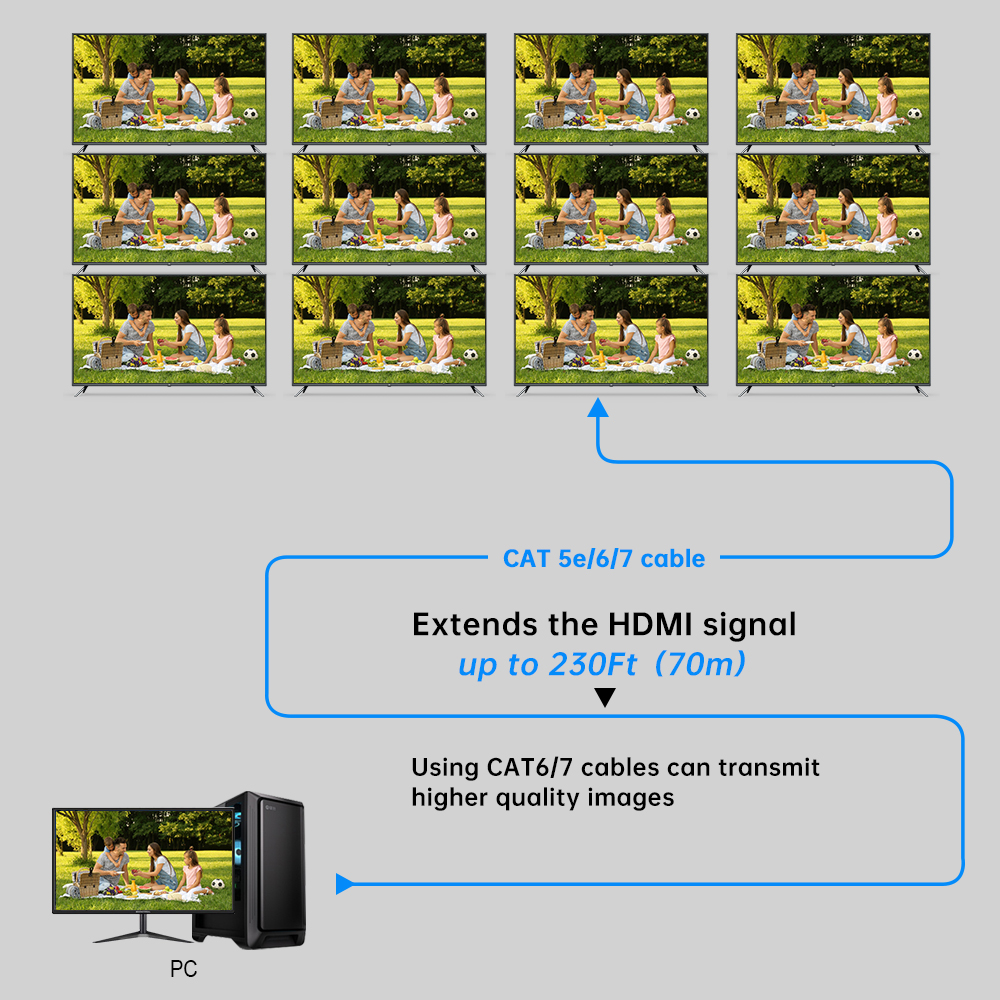

An HDMI splitter is a device that takes one HDMI input signal and duplicates it to multiple displays simultaneously.
For example:
1 HDMI source → 2 displays
1 HDMI source → 4 displays
1 HDMI source → 8 displays
All connected displays show the same content at the same time.
HDMI splitters are commonly used in:
Retail digital signage
Trade show displays
Sports bars
Classroom AV systems
Church AV systems
In most cases, HDMI splitters are designed for straightforward signal duplication without switching flexibility.

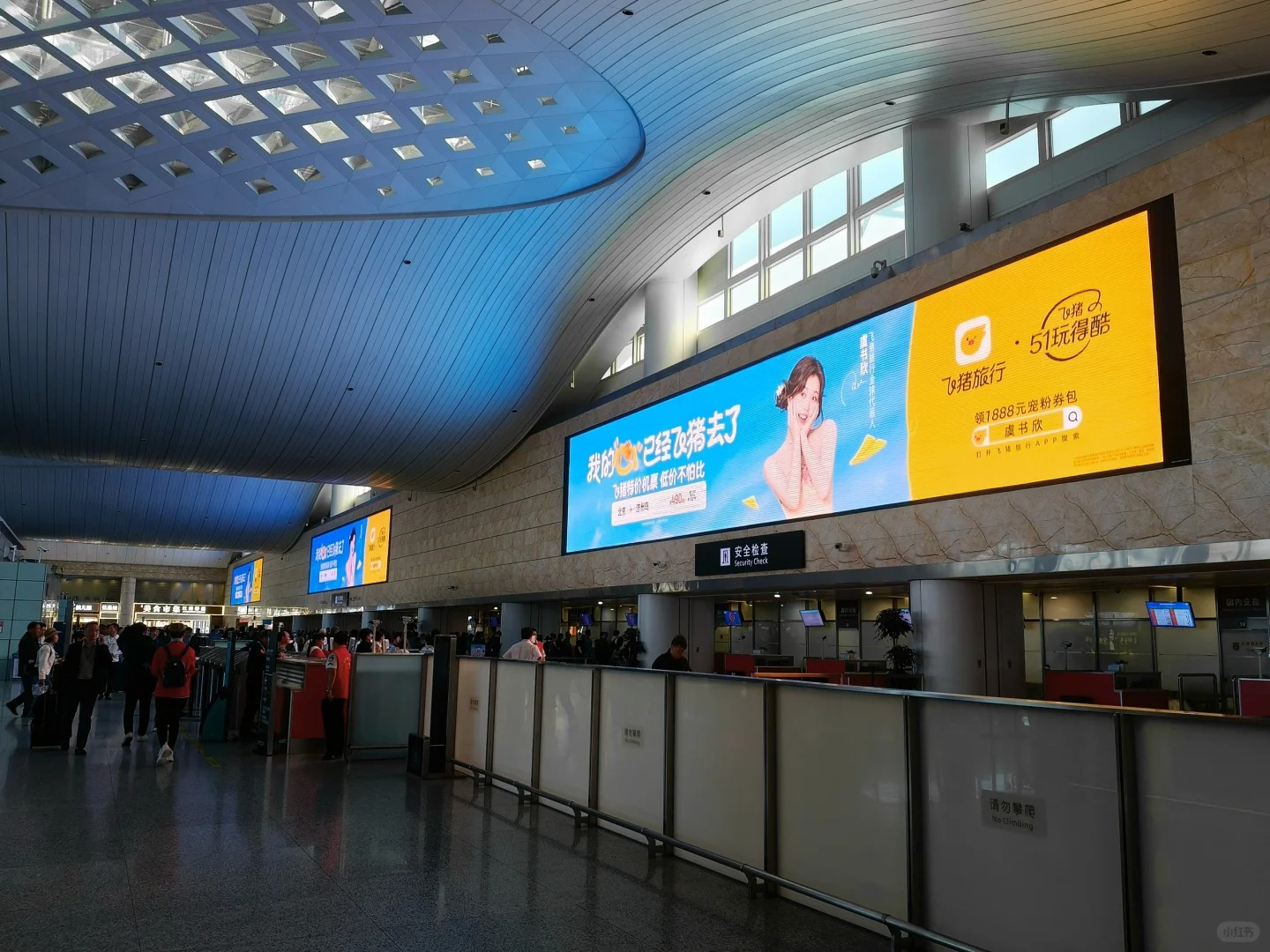

Retail Digital Signage Applications
HDMI splitters are widely used in retail digital signage systems where the same content needs to be displayed across multiple screens simultaneously.
Typical applications include:
By duplicating one HDMI signal to multiple displays, HDMI splitters provide a simple and cost-effective solution for synchronized content distribution.
The primary purpose of an HDMI splitter is to mirror a single source across multiple screens.
For projects where all displays need identical content, an HDMI splitter provides an affordable and reliable solution.
Modern HDMI splitters support:
18Gbps bandwidth
4K@60Hz 4:4:4
HDR10
HDCP 2.2
Dolby Vision
This makes them suitable for professional AV installations requiring high-resolution video transmission.

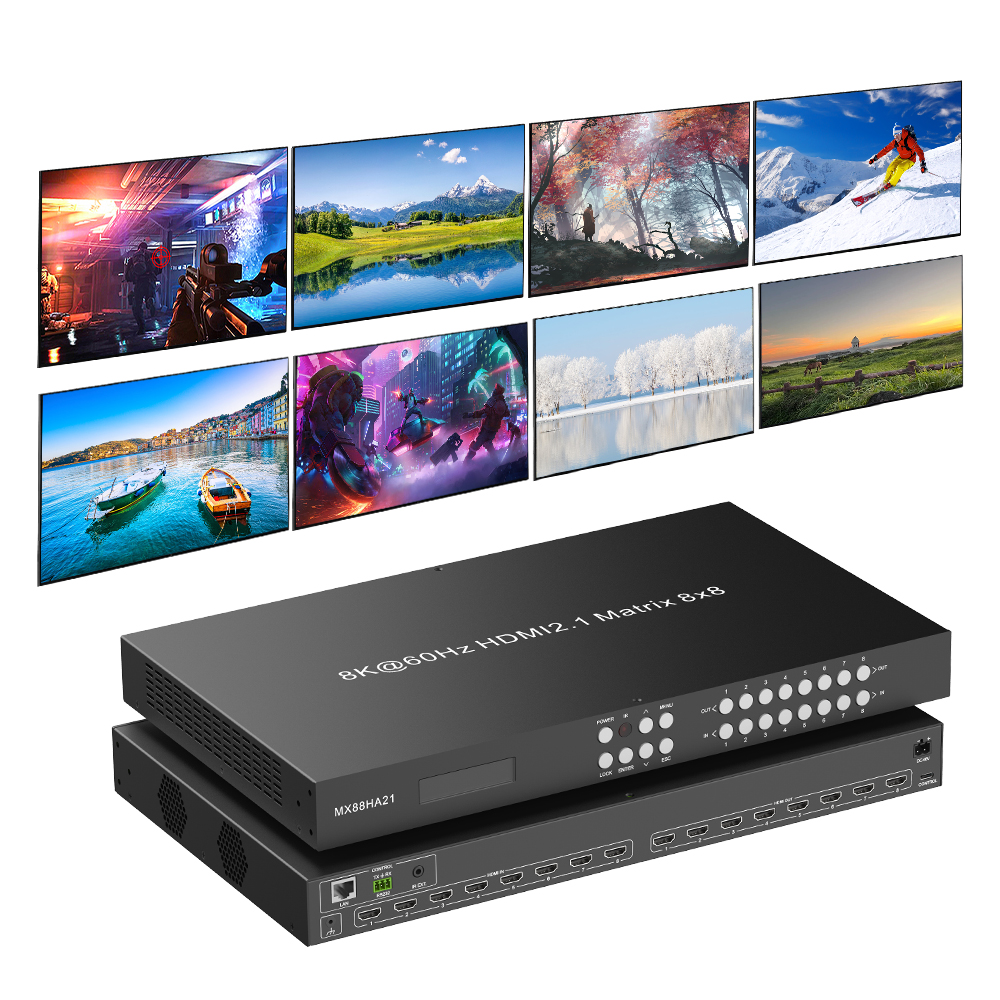

An 8K60 HDMI matrix switch is a more advanced AV distribution device that allows multiple HDMI sources to be routed independently to multiple displays.
For example:
8 HDMI inputs → 8 HDMI outputs
Any input can be assigned to any output
Unlike an HDMI splitter, a matrix switch provides dynamic signal routing and switching control.
This makes HDMI matrix systems ideal for:
Conference room AV
Control rooms
Video wall systems
Broadcast environments
Command centers
Multi-room AV distribution
Each display can show different content from different sources.
Example:
| Output Display | Source |
|---|---|
| Display 1 | PC |
| Display 2 | Media Player |
| Display 3 | Camera |
| Display 4 | Laptop |
This flexibility is essential in professional AV installations.
Many HDMI matrix switches support:
IR control
RS232
Web GUI
TCP/IP control
Remote management
This enables centralized AV system operation in enterprise and commercial environments.
Professional HDMI matrix switches often include:
Fast switching
Seamless switching
Scaler outputs
EDID management
Audio extraction
These functions improve system compatibility and user experience.
| Feature | HDMI Splitter | HDMI Matrix Switch |
|---|---|---|
| Main Function | Duplicate one source | Route multiple sources |
| Input Sources | Single input | Multiple inputs |
| Output Flexibility | Same content on all displays | Independent content per display |
| AV Control | Limited | Advanced |
| Ideal Applications | Digital signage, retail | Conference room AV, video wall |
| Complexity | Simple | Advanced |
| Cost | Lower | Higher |
| Switching Capability | No | Yes |
| Video Wall Support | Limited | Excellent |
| Multi-Source Management | No | Yes |
For modern conference room AV systems, an HDMI matrix switch is usually the better choice.
Conference rooms often require:
Multiple laptops
Wireless presentation systems
Video conferencing devices
Multiple displays
Flexible switching
An HDMI matrix allows users to route any source to any display without reconnecting cables manually.
Example conference room setup:
Laptop → Main display
Camera → Secondary monitor
Media player → Side display
This flexibility is difficult to achieve with a standard HDMI splitter.
When selecting an HDMI matrix switch for conference room installations, consider:
4K60 HDMI 2.0 support
HDR compatibility
Audio extraction
EDID management
RS232 or TCP/IP control
Seamless switching
These features improve compatibility and simplify integration.
For professional video wall applications, an HDMI matrix switch is typically the preferred solution.
Video wall environments often require:
Multiple input sources
Dynamic content switching
Flexible routing
Scaler support
Video wall processing
A matrix switch provides significantly more control and scalability than a standard HDMI splitter.
HDMI matrix switches are widely used in modern video wall systems for distributing multiple HDMI sources across multiple displays.
Unlike HDMI splitters that only mirror the same content to all screens, an HDMI matrix switch allows different sources to be routed to different displays. This provides more flexibility for professional AV installations.
A video wall system may display:
Live video feeds
Surveillance cameras
Digital signage content
Presentation materials
Monitoring dashboards
across multiple screens at the same time.
HDMI matrix switches make it easy to switch and manage these sources without reconnecting cables manually.
In video wall applications, different content often needs to appear in different areas of the display wall.
For example:
Security camera feeds on one screen
Presentation content on another
Real-time monitoring data on additional displays
An HDMI matrix switch allows centralized control of all connected sources and displays, improving system flexibility and operation efficiency.
Many professional HDMI matrix systems also support:
Video wall processors
Multiview systems
Scaler processing
Seamless switching
Audio extraction
These features improve display synchronization and overall AV system performance.
HDMI matrix switches are commonly used in:
Control rooms
Security monitoring centers
Command centers
Retail digital signage
Shopping mall advertising walls
Broadcast studios
Exhibition displays
Stable 4K60 HDMI 2.0 signal transmission and flexible source routing are important in these environments.
Compared with HDMI splitters, HDMI matrix switches provide:
Independent signal routing
Multi-source management
Flexible display control
Better scalability
Centralized AV management
This makes HDMI matrix switches a more suitable solution for professional video wall systems.
An HDMI splitter is the right solution when:
All displays show identical content
Budget is limited
Signal routing is unnecessary
Installation simplicity is important
Typical applications include:
Retail stores
Restaurant menu boards
Church displays
Exhibition booths
Basic signage systems
For simple AV duplication tasks, HDMI splitters remain highly reliable and cost-effective.
An HDMI matrix switch is recommended when:
Multiple sources must connect to multiple displays
Independent display control is required
AV flexibility is important
Future scalability is needed
Professional AV management is required
Ideal applications include:
Conference room AV
Video wall systems
Corporate meeting rooms
Broadcast studios
Educational facilities
Control centers
Modern professional AV installations increasingly require support for:
4K@60Hz 4:4:4
HDR10
Dolby Vision
HDCP 2.2
18Gbps bandwidth
When selecting either an HDMI splitter or HDMI matrix switch, ensuring full HDMI 2.0 compatibility is critical.
Low-quality devices may introduce:
Signal instability
Handshake issues
EDID conflicts
HDR compatibility problems
Professional-grade AV products provide better reliability for commercial installations.
EDID management is especially important in multi-display environments.
An advanced HDMI matrix switch can intelligently manage display resolutions and compatibility between different devices.
This is particularly useful in:
Conference room AV systems
Video wall installations
Mixed-resolution display environments
Proper EDID management helps avoid:
Black screens
Resolution mismatches
Audio loss
Signal dropouts
As AV systems continue evolving, HDMI matrix switches are becoming increasingly important due to their flexibility and scalability.
Modern AV environments now demand:
Centralized control
Multi-display routing
Hybrid meeting support
Video wall integration
High-bandwidth 4K60 transmission
For many commercial installations, HDMI matrix switches provide a more future-proof investment compared to basic HDMI splitters.
However, HDMI splitters still remain valuable for straightforward signal duplication projects where simplicity and cost efficiency are priorities.
An HDMI splitter duplicates one HDMI source to multiple displays, while an HDMI matrix switch allows multiple sources to be independently routed to multiple displays.
Yes. An HDMI matrix switch offers flexible source routing, making it ideal for conference rooms with multiple laptops, displays, and presentation systems.
Yes. Modern HDMI splitters support 4K@60Hz, HDR, HDCP 2.2, and 18Gbps bandwidth when designed for HDMI 2.0 applications.
For professional video wall applications, an HDMI matrix switch is generally the better solution due to its routing flexibility and scalability.
Many professional HDMI matrix switches support SPDIF, optical, or analog audio extraction for external audio systems.
Both HDMI splitters and HDMI matrix switches play important roles in professional AV systems. The right choice depends on your application requirements, system complexity, and scalability needs.
If your project requires simple signal duplication, an HDMI splitter provides an efficient and affordable solution.
However, for advanced conference room AV systems, video wall deployments, and multi-source environments, an HDMI matrix switch delivers significantly greater flexibility and control.
As commercial AV systems continue evolving toward more dynamic and scalable environments, HDMI matrix technology is becoming an increasingly essential component in professional AV integration.
