The hdmi matrix 8x8 is engineered for complex AV systems requiring precise, independent routing of multiple sources to multiple displays. Designed for control rooms, conference spaces, and broadcast studios, this 8k hdmi matrix switcher accommodates up to eight inputs and outputs simultaneously with full flexibility. Its architecture addresses the demands of system integrators and AV professionals who require reliable, scalable solutions for managing ultra-high-definition content without signal latency or degradation. With this matrix hdmi model, users gain control interoperability for diverse operational requirements.
High-Bandwidth HDMI 2.1 Technology with Advanced Signal Management
Incorporating HDMI 2.1 standards, this 8k hdmi switch delivers up to 48Gbps bandwidth, supporting resolutions as high as 8K@60Hz and 4K@120Hz with 36-bit deep color. The product features robust EDID management and built-in signal retiming to maintain signal integrity over extended cable runs. Audio compatibility includes immersive formats such as Dolby Atmos and DTS-HD Master Audio, ensuring synchronized high-fidelity video plus audio distribution. Multiple control interfaces including RS232, TCP/IP, and IR remote provide seamless integration into existing AV infrastructures while ensuring stable operation in professional settings.
This hdmi matrix 8x8 device is optimized for demanding industrial sectors such as digital signage networks, broadcasting studios, and large-scale video walls. It aligns with rigorous compliance standards, delivering consistent video performance in high-density AV environments requiring independent multi-resolution content routing. The matrix supports scalable workflows, enabling dynamic source selection and display management in real-time, thus enhancing operational efficiency and content delivery reliability for corporate, commercial, and government systems.
The design of this matrix hdmi device emphasizes modular construction and rack-mount compatibility, facilitating easy installation and maintenance within complex AV frameworks. Its architecture supports flexible expansion and seamless interfacing with legacy and next-generation AV equipment. Enhanced connectivity options through multiple control protocols optimize system integration while minimizing latency and signal loss risks. This 8k hdmi matrix switcher also incorporates advanced EDID and signal retiming functionalities, ensuring stable handshake and consistent data throughput across all connected devices.
This 8k hdmi switch combines high throughput capacity with intuitive control options, enabling precise and responsive source-to-display switching. Its support for multi-format signals, including ultra-high definition and premium audio codecs, guarantees superior output quality. User operations benefit from multi-channel control access and front panel management, allowing streamlined configuration and troubleshooting. This results in decreased downtime and enhanced user productivity, making it an essential tool for engineers and AV managers requiring dependable, high-performance video distribution.

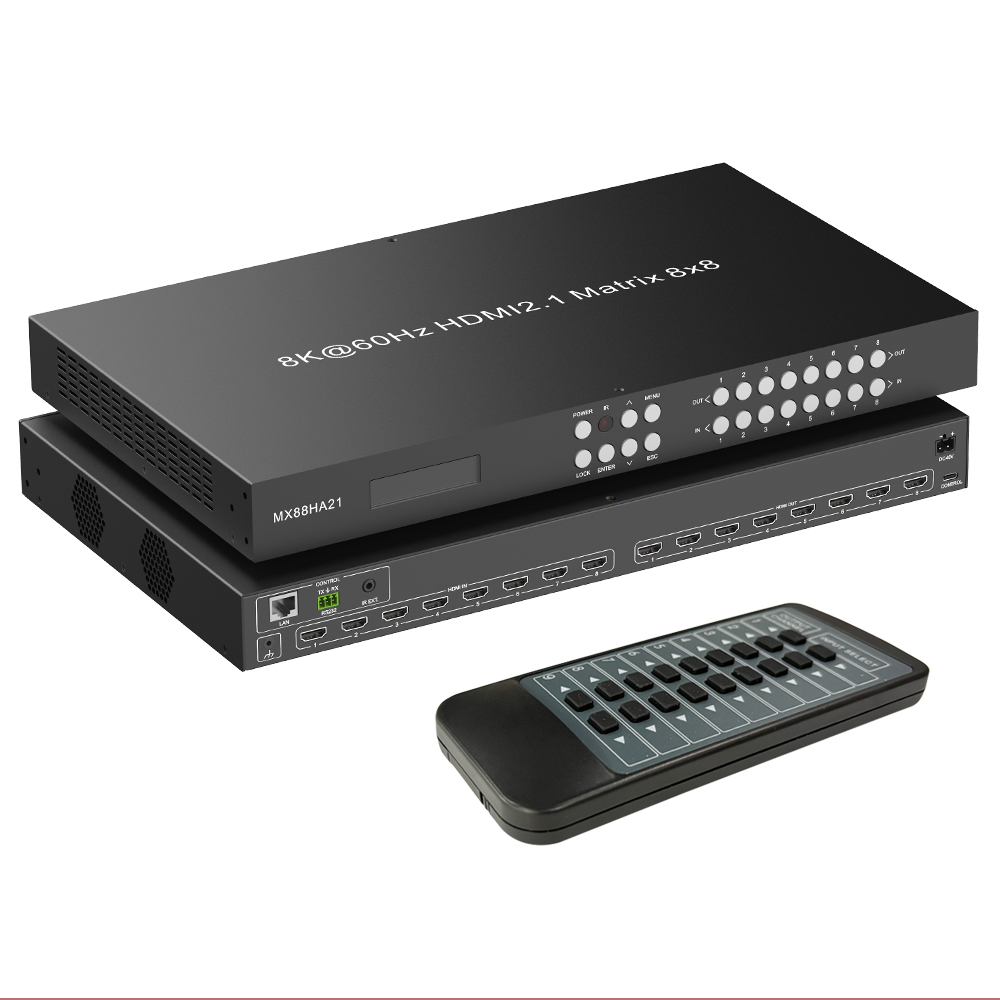

The 8K HDMI 2.1 Matrix Switch 8x8 is a professional AV distribution solution designed to route eight HDMI sources to eight HDMI displays independently or simultaneously.
Supporting ultra-high resolutions up to 8K@60Hz and 4K@120Hz, this matrix delivers exceptional video quality for conference rooms, control centers, digital signage, video walls, and home theater systems.
With HDR10, Dolby Vision, advanced audio pass-through, and multiple control methods including RS232, IP, IR remote, and front panel buttons, it provides flexible integration for professional AV installations.

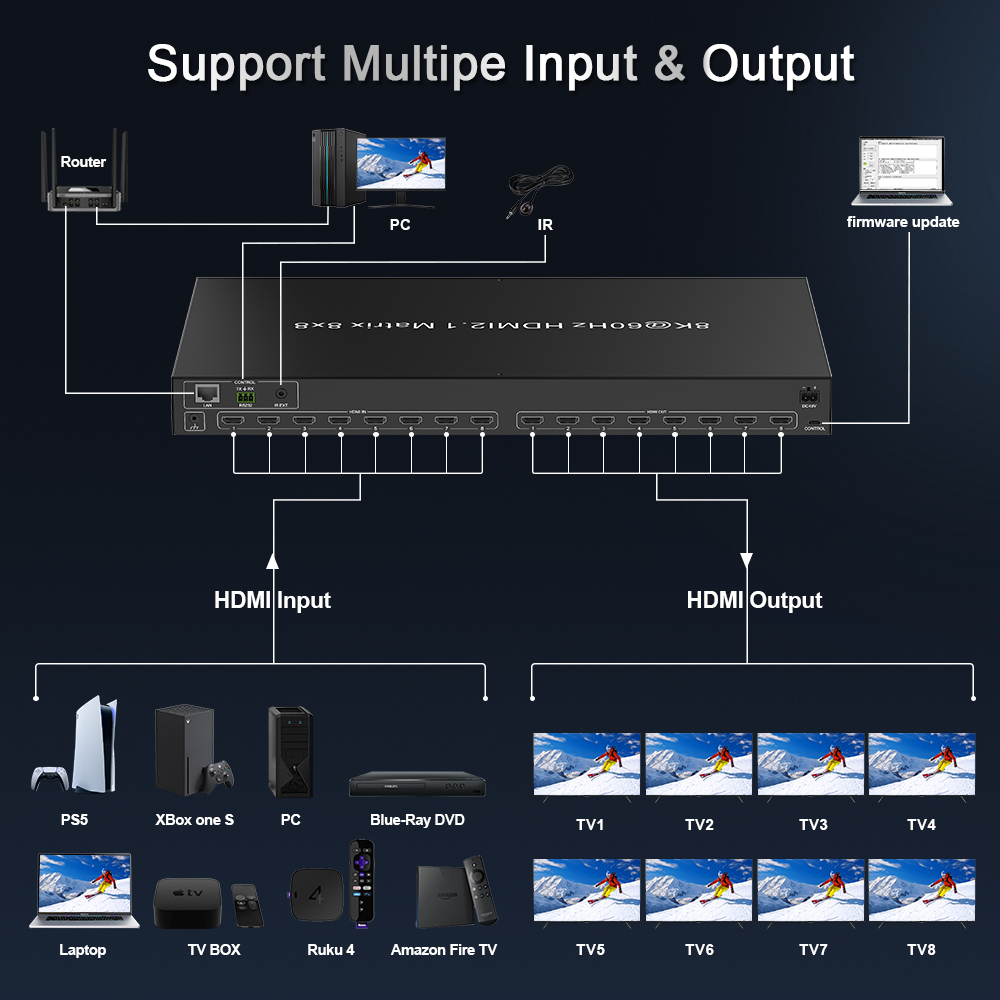

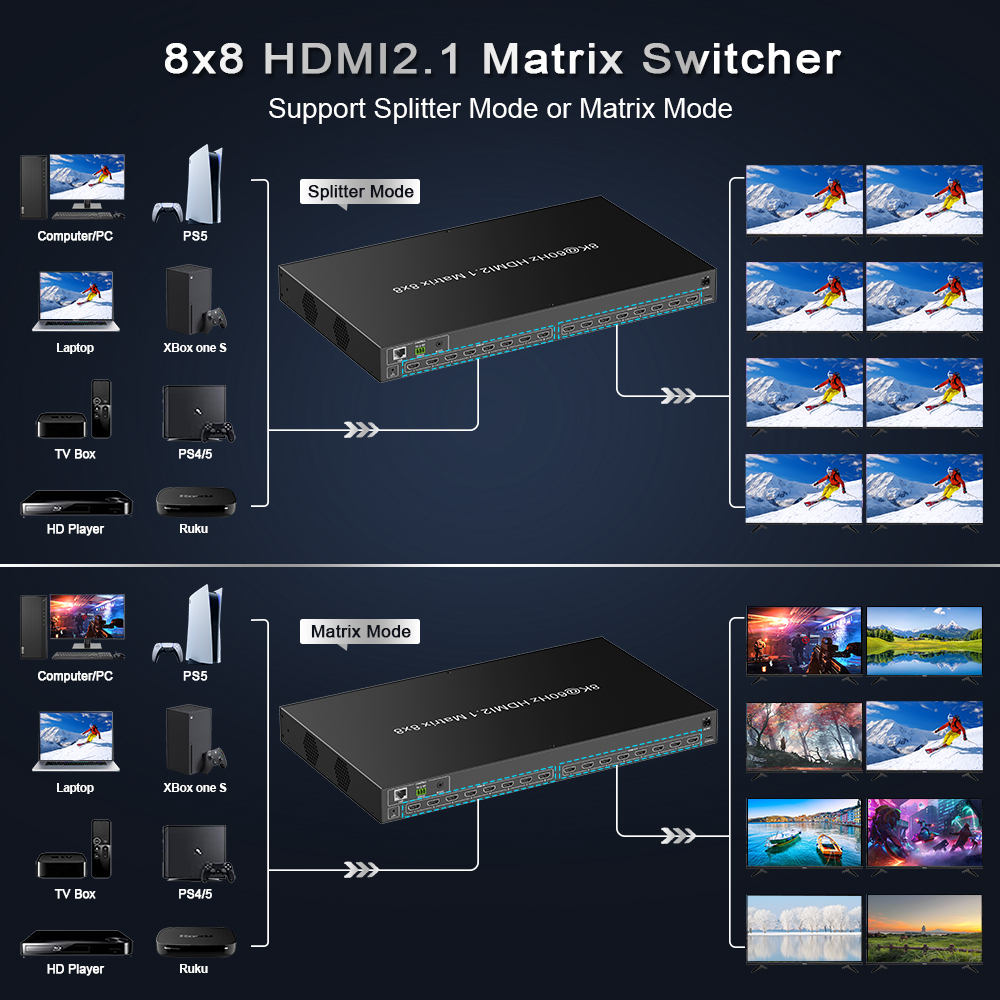

This HDMI 2.1 Matrix Switch 8x8 allows users to distribute eight HDMI source devices to eight displays with flexible switching and independent routing. It supports simultaneous 8K, 4K, and 1080P output, making it ideal for complex AV distribution environments.
Built with HDMI 2.1 technology, the matrix supports resolutions up to 8K@60Hz 4:2:0 and 4K@120Hz, delivering smooth motion and ultra-clear image quality for gaming systems, broadcasting, digital signage, and professional AV applications.
The device also supports HDR10 and Dolby Vision, providing enhanced contrast, vivid colors, and immersive visual performance.

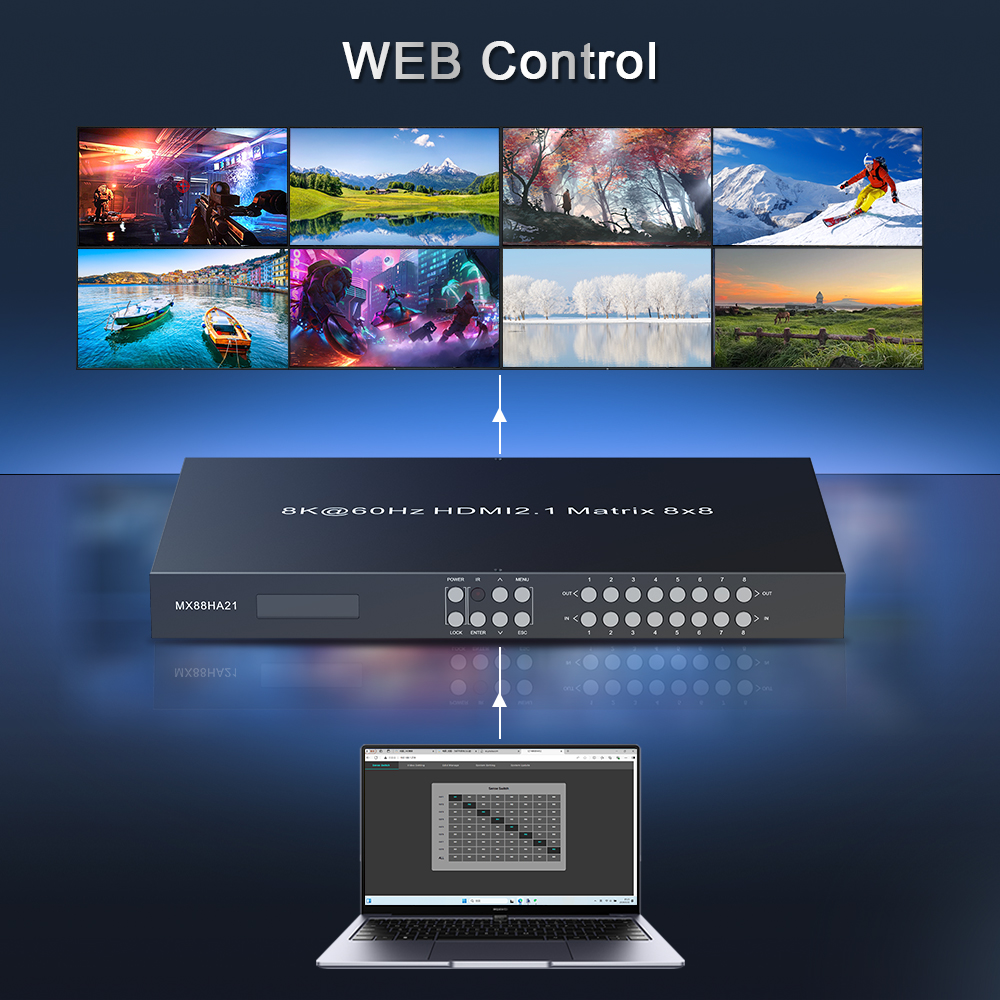

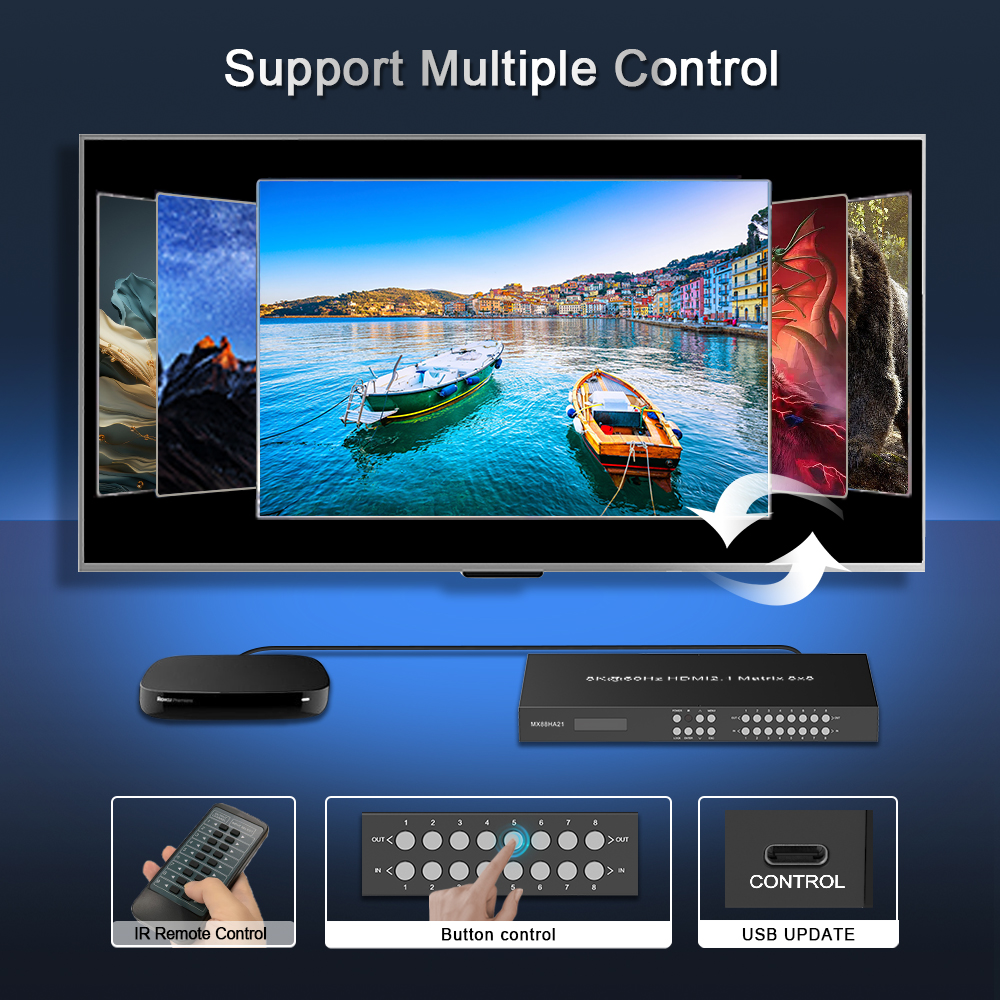

For professional integration, multiple control options are available, including front panel buttons, IR remote control, RS232, and TCP/IP control, enabling easy operation in control rooms and automation systems.
Advanced audio pass-through supports Dolby Atmos, DTS-HD Master Audio, Dolby TrueHD, LPCM 7.1, and other HDMI audio formats, ensuring high-quality audio performance for modern AV systems.
With signal retiming technology, the matrix maintains stable signal transmission without loss of image quality over long-distance setups.

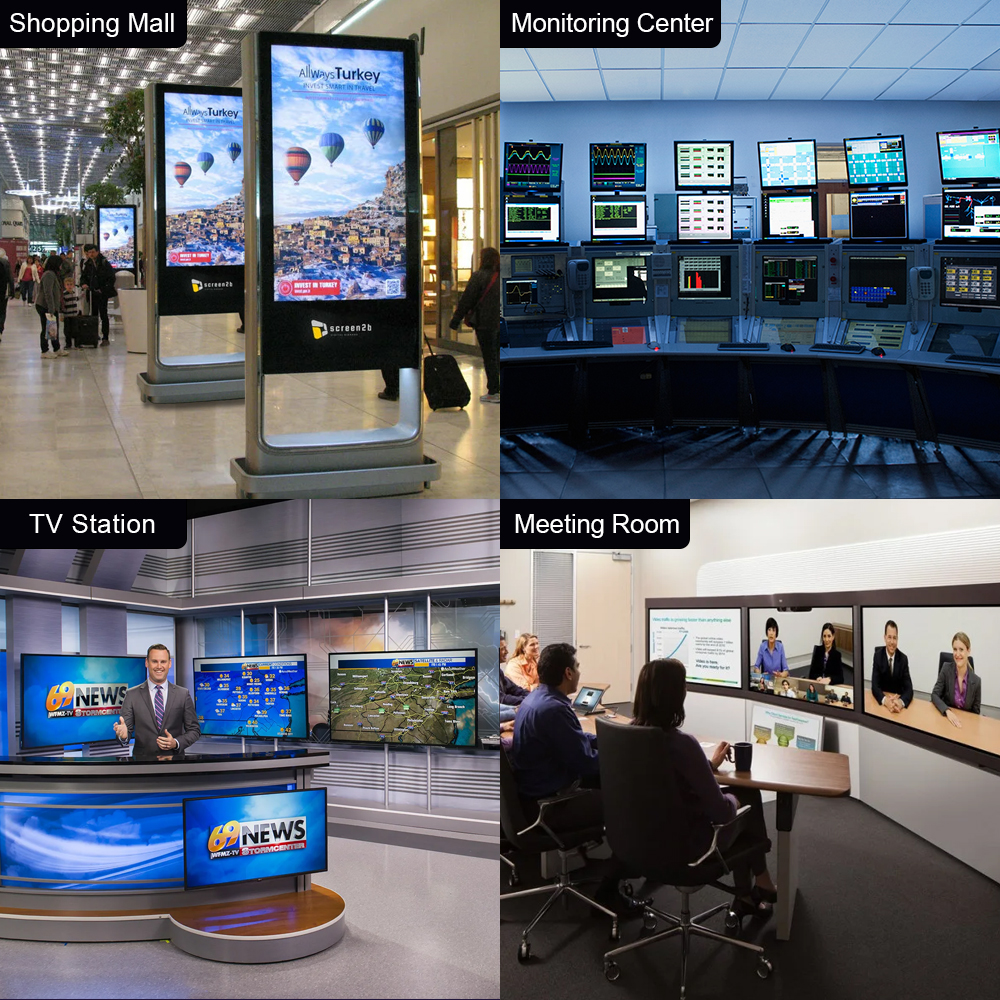

Conference Room and Control Center AV Distribution
| HDMl vertion | HDMI 2.1 | HDCP version | HDCP2.3 |
| HDMI resolution | 8K@60Hz/4K@60Hz/1080P@60Hz | Support colour depth | 24bit/30bit,36bit deep color |
| Audio format | 5)DTS-5.1/DTS-HD/Dolby-5.1/PCM | ||
| Input/Output TDS signal | 0.5~1.5Volts p-p(TTL) | Max bandwidth | 600MHZ |
| Inut/Output TDC signal | 5Volts p-p (TTL) | Max working current | 3.5A |
| Power adapter format | Input: AC(50HZ60HZ)100V-240V:Output: 12V/5A | Max baud rate | 6Gbps |
| OperatingTemperature range | (-15 to +55℃) | Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (LxWxH) | 440*258*44(mm) | Weight | 3Kg |
