As display systems continue to grow in size and complexity, simple signal routing is no longer enough.
Modern AV projects often require multiple video sources, flexible screen layouts, synchronized playback, and support for non-standard display resolutions.
An 8K video wall processor provides centralized control for these environments, allowing content to be scaled, arranged, and distributed across multiple displays from a single platform.
The GreatPro VW14HH-F8K is designed for applications such as LED video walls, control rooms, digital signage, conference spaces, esports venues, and exhibition displays.
An 8K60 Video Wall Processor is a professional video processing device that converts a single 8K60 (7680×4320@60Hz) ultra-high-definition signal into multiple synchronized 4K60 outputs.
These capabilities make video wall processors a key component in professional AV installations.
| Feature | Specification |
|---|---|
| Input Resolution | Support up to 8K60 (7680×4320 @ 60Hz) |
| Inputs | HDMI 2.1, DP 1.4, USB-C |
| Outputs | 4 × HDMI |
| Layout Modes | 2×2, 1×2, 1×3, 1×4, Mosaic |
| Resolution Support | Custom Input & Output Resolution |
| Output Sync | Frame-Synchronized |
| Control | GUI Software, RS232 |
| Applications | LED Walls, Control Rooms, Digital Signage, Esports, Exhibitions |
One of the biggest challenges in LED display projects is resolution matching.
Unlike standard monitors, LED walls often use non-standard resolutions based on cabinet size and installation requirements.
Examples include:
Many traditional processors only support fixed output resolutions, which can lead to:

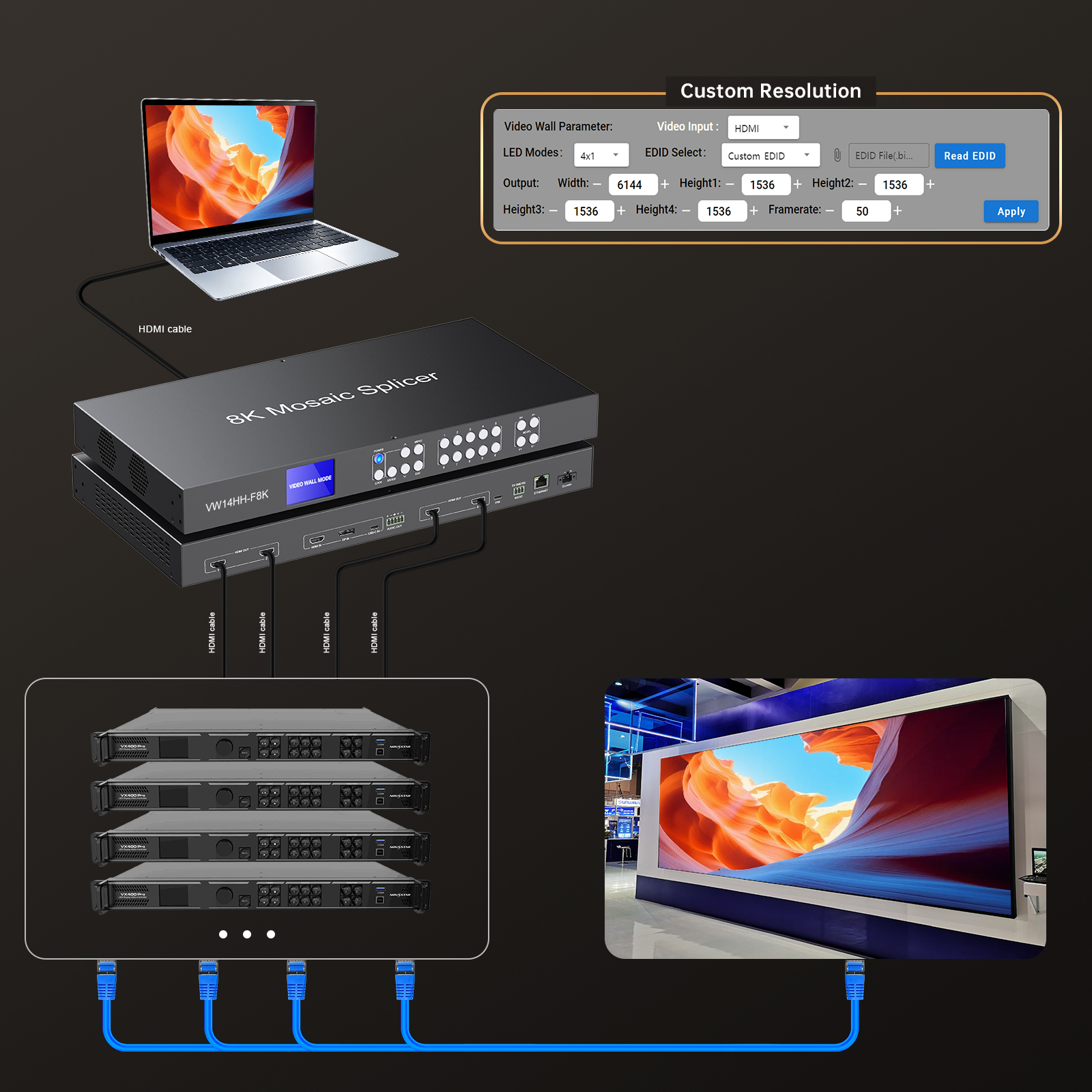

The VW14HH-F8K supports custom input and output resolutions within the 8K60 bandwidth range, allowing the processor to match the native resolution of the display.
For system integrators working with LED walls, this can simplify installation and improve visual performance.
Different projects require different display configurations.

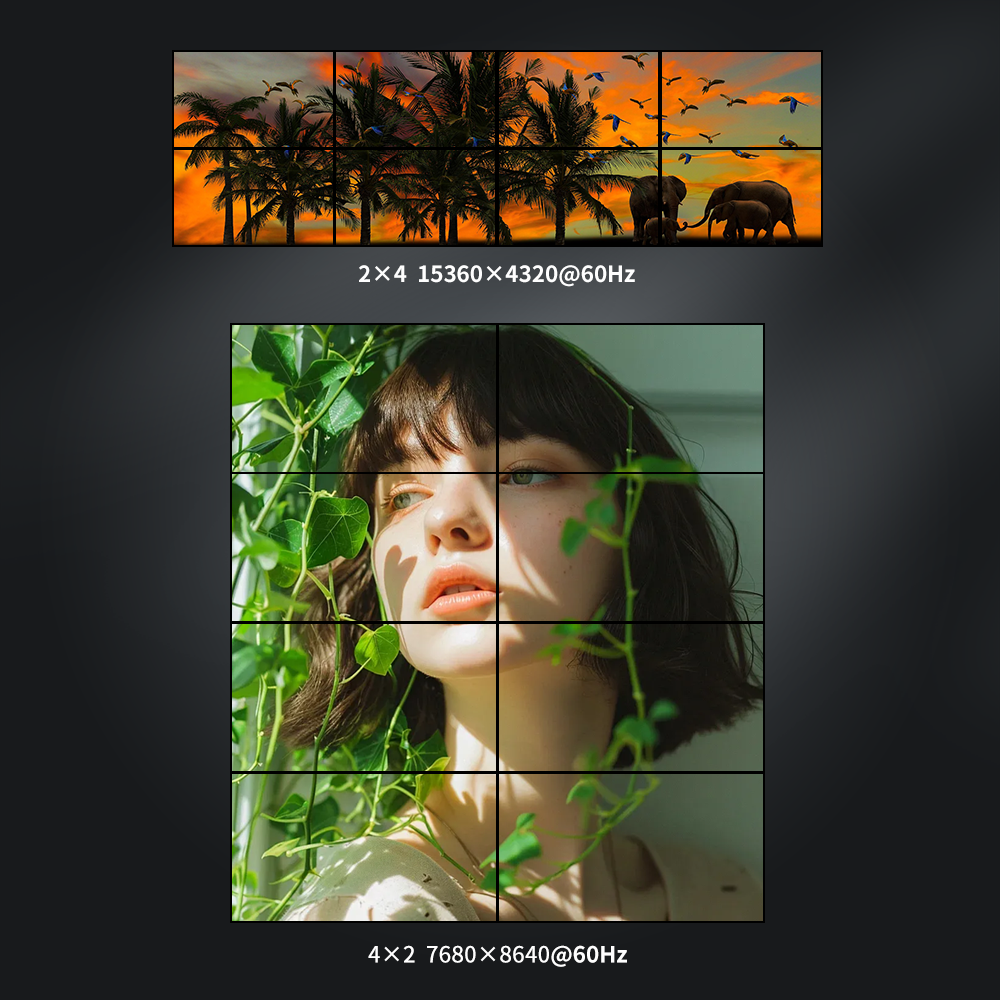

The VW14HH-F8K supports multiple video wall layouts, including:
| Layout | Typical Application |
|---|---|
| 2×2 | Control Rooms |
| 1×2 | Conference Displays |
| 1×3 | Esports & Broadcast |
| 1×4 | Digital Signage |
| Mosaic | Exhibitions & Creative Displays |
Layouts can be configured to match the requirements of the installation without additional hardware.
Synchronization is critical in any multi-screen environment.
Unsynchronized displays can cause:
The VW14HH-F8K provides four frame-synchronized HDMI outputs, ensuring that content is displayed consistently across all connected screens.
This is particularly important for:

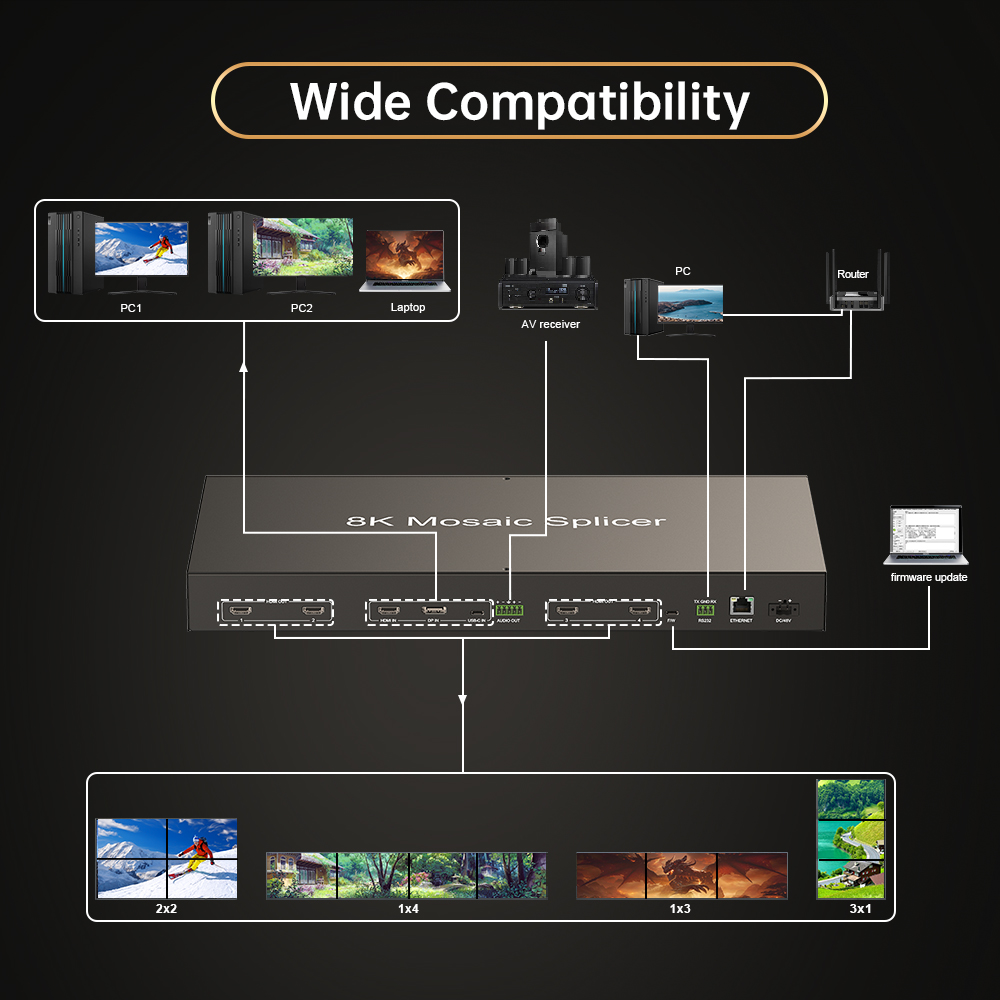

Modern AV systems use a variety of source devices.
The VW14HH-F8K supports three commonly used interfaces:
| Interface | Typical Devices |
|---|---|
| HDMI 2.1 | PCs, Media Players, Gaming Systems |
| DP 1.4 | High-Performance Workstations |
| USB-C | Laptops, MacBooks, Mobile Workstations |
This flexibility allows the processor to integrate easily into both new and existing AV infrastructures.
Although they may appear similar, they serve different purposes.
| Feature | Video Wall Processor | HDMI Matrix |
|---|---|---|
| Signal Routing | Yes | Yes |
| Video Wall Creation | Yes | No |
| Multi-Window Display | Yes | No |
| Video Scaling | Yes | Limited |
| Custom Resolution Support | Yes | No |
| Output Synchronization | Yes | Basic |
| Best For | Multi-Screen Display Systems | Signal Distribution |
In short:
An HDMI matrix routes signals.
A video wall processor manages visual presentation.
Used in security monitoring, traffic management, utility control, and emergency operations where multiple video sources must be viewed simultaneously.
Ideal for retail environments, shopping malls, airports, transportation hubs, and public information displays that require flexible content presentation across multiple screens.
Supports large-format displays, scoreboards, live production systems, and audience-facing video walls where synchronized playback is essential.
Enables multi-window presentations, content sharing, and centralized display management in meeting rooms and conference facilities.
Video Processor for LED Displays Suitable for museums, exhibition halls, trade shows, experience centers, and creative LED installations that require custom resolutions and flexible screen layouts.
The GreatPro VW14HH-F8K combines 8K60 processing, custom resolution support, flexible video wall layouts, synchronized outputs, and multiple input options in a single platform.
Whether deployed in a control room, digital signage network, exhibition space, or LED video wall project, it provides the tools needed to build scalable and reliable multi-screen display systems.
A video wall processor is a device that manages and distributes video content across multiple displays, supporting layouts, scaling, synchronization, and multi-window viewing.
Yes. Both custom input and output resolutions are supported within the 8K60 processing range.
Yes. All four HDMI outputs are frame synchronized.
2×2, 1×2, 1×3, 1×4, and Mosaic display modes.
Control rooms, LED video walls, digital signage, conference systems, esports venues, and exhibition displays.
