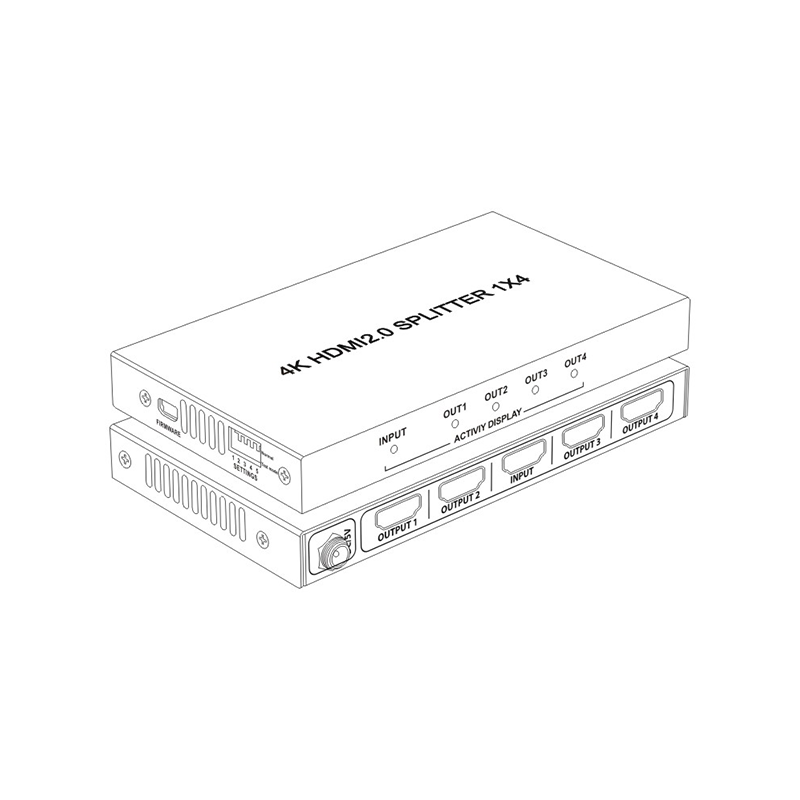

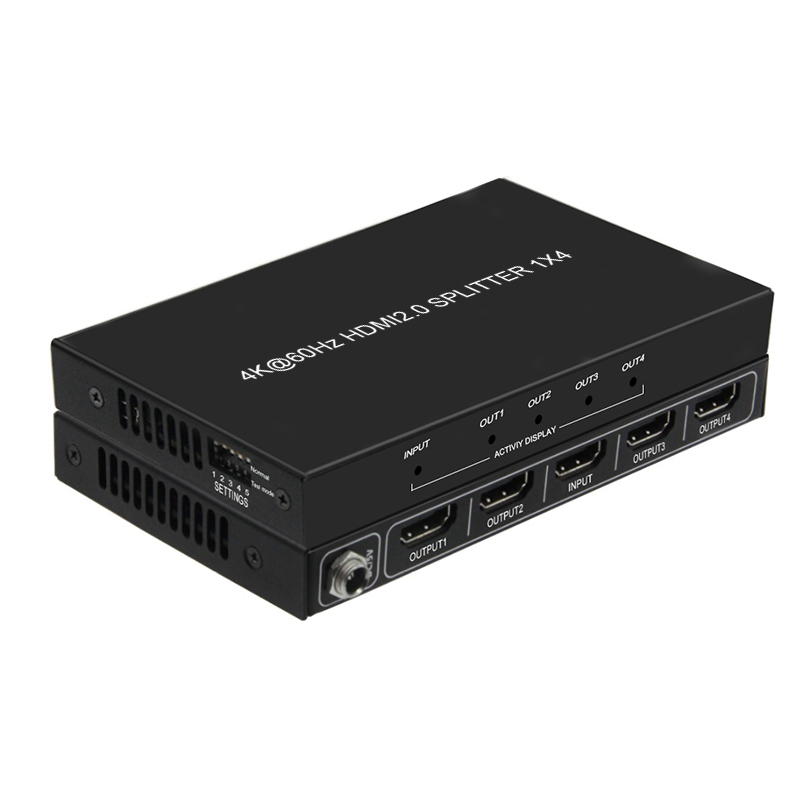

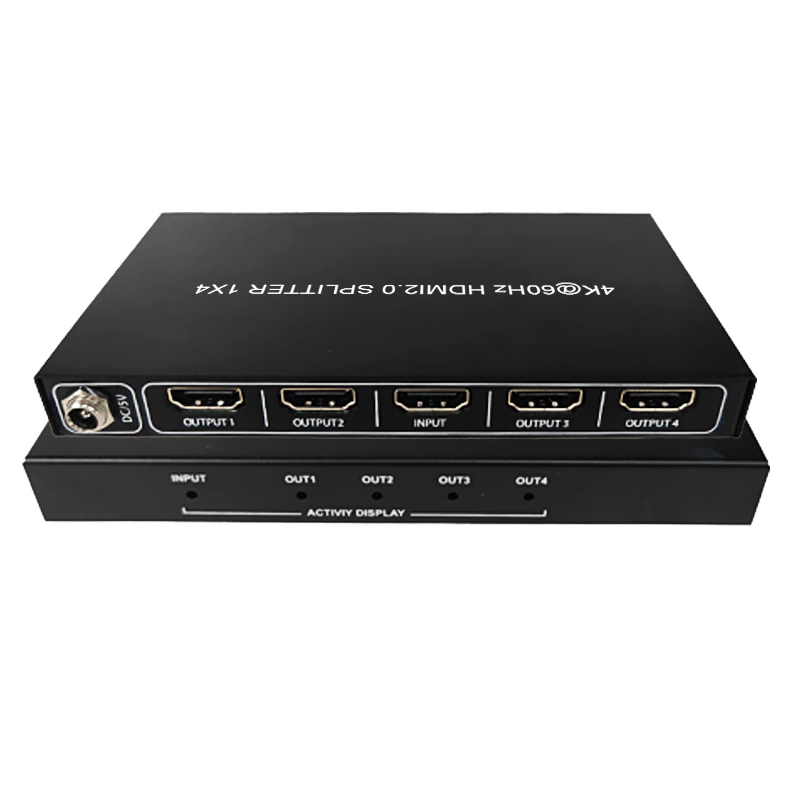

SP14H2: HDMI2.0 4K 1X4 Splitter with Scaler

Product Description

Optimized Multi-Display Distribution for Professional Integration

The 4k hdmi splitter is engineered to distribute a single HDMI source into four independent outputs, making it ideal for enterprise AV integration, control rooms, and digital signage systems. Target users include AV installers, IT managers, and system integrators who require consistent video feeds across multiple displays without signal degradation. This hdmi splitter 1x4 consolidates complex routing needs into a compact, rack-mountable device, enhancing operational efficiency in environments demanding synchronous content delivery while ensuring compliance with modern HDCP protocols.

Advanced Technical Specifications for High-Fidelity Output

Featuring HDMI 2.0 compliance, the 4k hdmi splitter supports 4K UHD video at 60Hz with 4:4:4 chroma subsampling and deep color formats up to 36-bit, ensuring accurate color representation and smooth motion. The device includes a built-in scaler enabling downscaling to 1080p to accommodate legacy displays without compromising signal integrity. With multi-channel audio formats including Dolby Digital 7.1CH and SPDIF optical output options, this hdmi splitter 4k provides robust AV performance. It supports cable runs up to 15m input and 25m output with standard cables, ensuring flexibility in installation layouts in professional settings.

Versatile Use Cases Across AV and Broadcast Industries

The 4k hdmi splitter facilitates uniform video signal distribution for corporate conference rooms, distribution digital signage, and broadcast control centers by maintaining high-resolution content across multiple endpoints. Its HDCP 2.2 compliance guarantees secure playback of encrypted content, vital for media production and event venues. By enabling simultaneous signal replication, the hdmi splitter 1x4 enhances workflow efficiency and expands system scalability in environments requiring synchronized visual communication without latency or quality loss.



Product Advantages

Structural and Design Benefits Supporting Modular AV Systems
This hdmi splitter 4k features a modular design optimized for rack or shelf mounting, supporting professional AV infrastructure requirements. Its compact form factor facilitates dense system builds without occupying excessive space. The 4k hdmi splitter integrates HDMI 2.0 ports with high signal integrity and shielding, ensuring stable multi-link connections. Its internal scaler adds versatility by providing backward compatibility with various display resolutions, simplifying heterogeneous system deployments while maintaining consistent signal delivery across four outputs.

Performance Efficiency and Ease of Integration in Complex Systems
The 4k hdmi splitter operates with plug-and-play functionality requiring no driver installation, accelerating deployment timelines and reducing setup complexity. Its support for 600 MHz bandwidth and up to 18 Gbps data rates enables flawless 4K@60Hz video distribution with minimal latency. Enhanced audio support and HDCP 2.2 compliance safeguard content integrity across commercial-grade displays. Cable length flexibility (input up to 15m, output up to 25m) further aids in adapting to varied installation architectures, making this hdmi splitter a practical and reliable component in multi-display AV solutions.

FEATURES

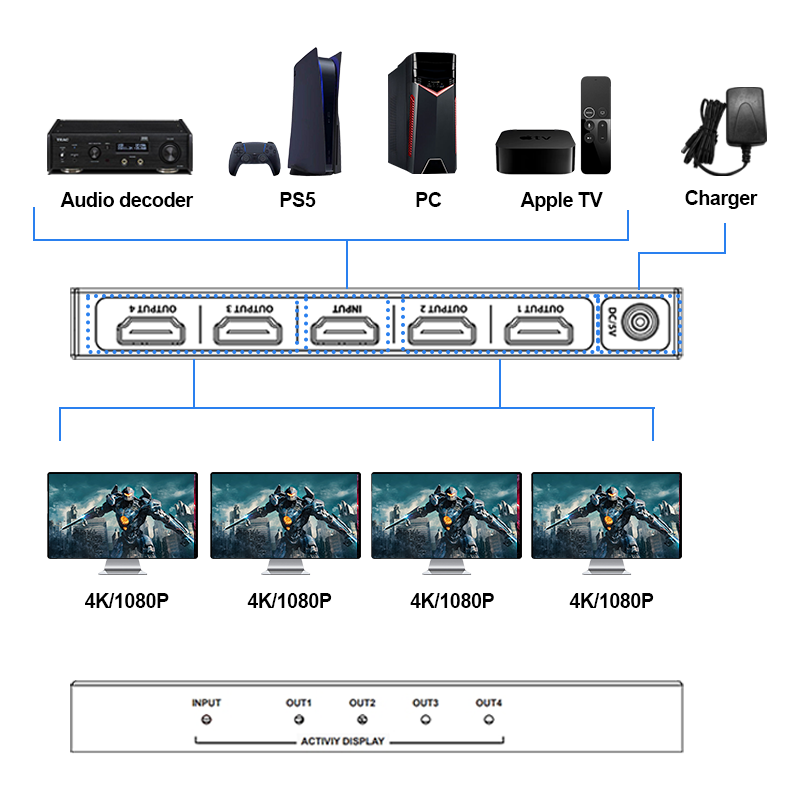

• Distributes one HDMl source signal to four HDMl displays. it supports 4K and 1080P output simultaneously.

• Support HDMI 2.0 4K@60Hz 4:4:4 8bit HDR and HDCP 2.2

• Support HDMl output down scaler to 1080p

• Support EDlD copy, detect the first HDMl output display device.

• Support 3D, Support deep color 30bit, 36bit

• Support Blue-Ray 24/50/60fs/HD-DVD/xVYCCDolby

•  Digital Audio format, HDMl ports support Dolby Digital 7.1CHAudio; SPDlF Optical Audio supports Dolby Digital/DTS-HD MasterAudio/DoIby-AC3/DSD/LPCM/PCM 2.1/5.1CH Audio.

• Support HDMl signal re-timing, never lose quality

• Support HDMl input up to 15metres AWG26 HDMl 2.0 standard cable length, output up to 25metres AWG24 cable length Plug and Play;

•  No driver required; Installs in minutes

Note: Scaler output don't support YUV4:2:2 signal. lf the source is 4K@60 4:2:2,the LED will flash, and stream out 4K picture.

SPECIFICATIONS

Use Scenarios

Corporate Conference Rooms Enhancing Collaborative Presentations
In enterprise environments, the 4k hdmi splitter distributes presentation and video content from a single HDMI source to multiple meeting room displays. This application ensures that all participants view the same high-resolution visuals simultaneously, facilitating seamless communication and decision-making processes. Its HDCP 2.2 compliance enables secure playback of protected content, while built-in downscaling maintains compatibility with existing 1080p screens. Integration into AV conferencing systems is streamlined through its plug-and-play design and flexible cable length support, optimizing conference workflows.

distribution Digital Signage Networks for Consistent Promotional Displays
business distribution environments benefit from the hdmi splitter 1x4 by delivering uniform 4K content across multiple storefront monitors, enhancing brand visibility and customer engagement. This splitter’s ability to maintain signal quality over extended cable runs simplifies installation across large floor areas or multiple locations. Compliance with HDCP 2.2 ensures compatibility with commercial media players distributing encrypted content. The device integrates smoothly within digital signage infrastructures, supporting synchronized playback essential for marketing consistency and operational scalability in distribution chains and shopping centers.



FAQ

What installation requirements does the 4k hdmi splitter have?
Our 4k hdmi splitter is designed for plug-and-play use. No driver or software installation is needed, allowing quick deployment in professional AV setups such as conference rooms or digital signage systems. Its compact design supports rack or shelf mounting for flexible integration.

Can you customize the hdmi splitter for large-scale AV systems?
We offer tailored solutions and technical support for projects that require multiple units of our hdmi splitter 1x4. Please contact us to discuss custom configurations that meet your specific system scalability and compatibility needs.

What should I consider for cable length when installing the splitter?
We recommend using HDMI input cables up to 15 meters (AWG26) and output cables up to 25 meters (AWG24) to maintain signal quality. Proper cable management ensures the reliable performance of your hdmi splitter 4k device over extended distances.

Does the splitter support HDCP 2.2 protected content across all outputs?
Yes, our device complies fully with HDCP 2.2, enabling secure playback of protected content on all four outputs simultaneously. This ensures compatibility with 4K media sources and professional content distribution environments.
